1554/1555 Series Type 4X, 6P Polycarbonate and General Purpose ABS Enclosures
Hammond's 1554/1555 Series Enclosures are ideally suited for mounting printed circuit boards or DIN rail mounted components. The gasketed lid with two piece tongue and groove construction provides protection against access of oil, dust, and water. The replaceable gasket is one piece made from high temperature UL listed silicone. The lid is secured with M4 stainless steel machine screws which are threaded into corrosion resistant bushings for reptitive assembly and disassembly. All of the enclosure's hardware is designed to avoid corrosion caused by harsh environments over time.
Key Features
- Robust Construction: Both series are crafted from high-quality materials, ensuring excellent protection for your electronics in various environments.
- Versatile Sizes: Available in a range of sizes, the 1554 and 1555 enclosures cater to different project requirements, whether you need compact or more spacious options.
- Easy Access: Designed with accessibility in mind, these enclosures feature removable panels and easy-to-open lids, simplifying installation and maintenance.
- Customization Options: Hammond offers customization services, allowing you to tailor the enclosures to fit your specific needs, including color, printing, and cutouts.
- Environmental Protection: With an IP rating that ensures protection against dust and water, these enclosures are ideal for both indoor and outdoor applications.
Applications
The 1554 and 1555 Series Enclosures are perfect for a variety of applications, including:
- Industrial controls
- Telecommunications
- Medical devices
- Consumer electronics
Technical Features
- Enclosure color is a light gray (RAL 7035).
- Replaceable gasket is supplied loose inside the enclosure (not pre-installed).
- Lid screws are self captivating. Lid holes are threaded with the first installation of lid screws.
- Internal DIN rail mounting tabs molded into most models, except sizes “C” and “D”.
- Threaded (M3) integral brass inserts and/or standoffs (#6 self tapping screws) for PC board or inner panel mounting in all but the smallest sizes ("A" and “B”).
- Vertical PC card guides (for 1.5mm thick PC boards) are molded in all but the smallest sizes ("A" and “B”).
- Manufactured in North America.
- RoHS Compliant.
Ratings: ABS
- ABS versions are molded from general purpose material which carries a flammability rating of UL94-HB. For indoor use.
- ABS versions are not UL listed.
Ratings: Polycarbonate
- Polycarbonate versions are UV stabilized for outdoor use. Gray polycarb carries a UL94-5VA rating, while clear and smoked lids carry a UL94V-0 rating.
- Polycarbonate versions are cUL and UL 508A listed under file #E65324.
- Polycarbonate versions have been independently tested to meet IP66, IP67, and IP68 as well as NEMA Type 4, 4X, 6, 6P, 12 and 13 ratings. Exception: 1554VGY, 1554V2GY, 1554V2GYCL, and 1554V2GYSL are Type 4, 4X only. Customers should conduct their own testing to determine suitability for any specific application.
Photo Features

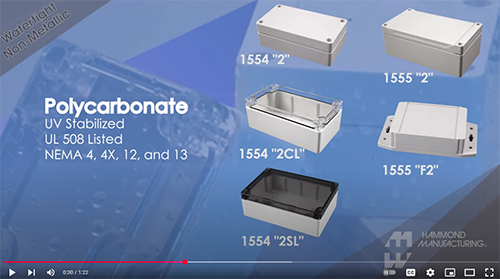

Polycarbonate versions available with gray, clear, or smoked lid. ABS version available only in gray.
