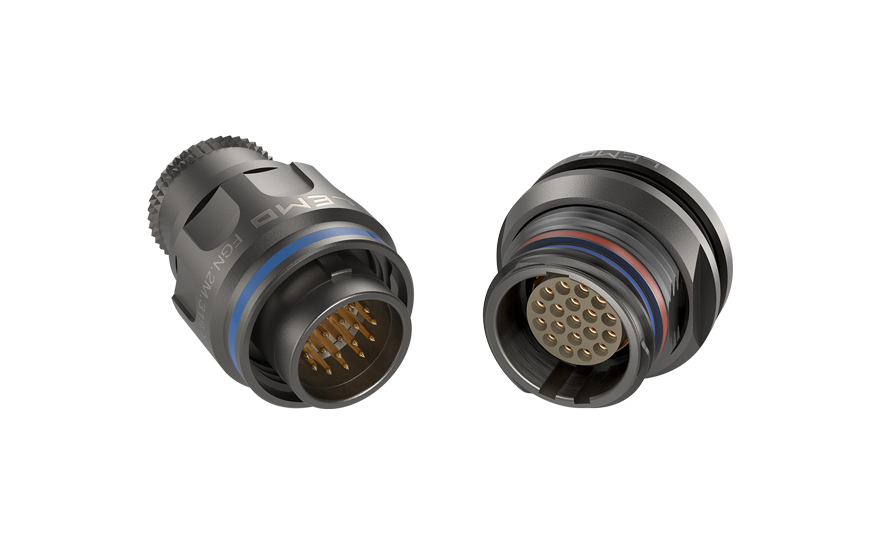

M Series - High Power Connectors
Rapidly improving battery technologies, capacities and cost as well as increasing tendency towards autonomous/driverless vehicles have created a clear trend towards increased power requirements for connectors in the automotive, transportation, defense, aerospace, robotics and motorsport industries.
They are capable of withstanding exposure to heavy accumulations of early morning dew that may condense on the control panel in cabs of vehicles left outdoors overnight. The NT toggle switches with larger standard metal or plastic levers are well suited for gloved-hand operation.
The new LEMO M series ratchet coupling High Power connectors were developed to satisfy the most stringent connection requirements for High Power distribution of electronic devices and electric drive vehicles - essentially any system with electrical motors, batteries and inverters where high torque may be required for short or longer period.
This new LEMO M series High Power portfolio constitutes one of the most comprehensive, compact, light, rugged, safe and completely waterproof reliable interconnect solution set available on the market for high power requirements.
Features
- Various sizes & configurations providing maximum rated current ranging from 140A to 430A
- 360° screening for full EMC shielding
- Wide temperature range -55°C to 200°C
- Broad range of lightweight aluminium shell models
- Compact design for space savings
- Ratchet-coupling mechanism
- High shock and vibration resistance
- Tested to MIL Standards (MIL-STD-810F)
- Threaded option for MIL-DTL-38999M backshell
Video
Downloads
View M Series Catalog
